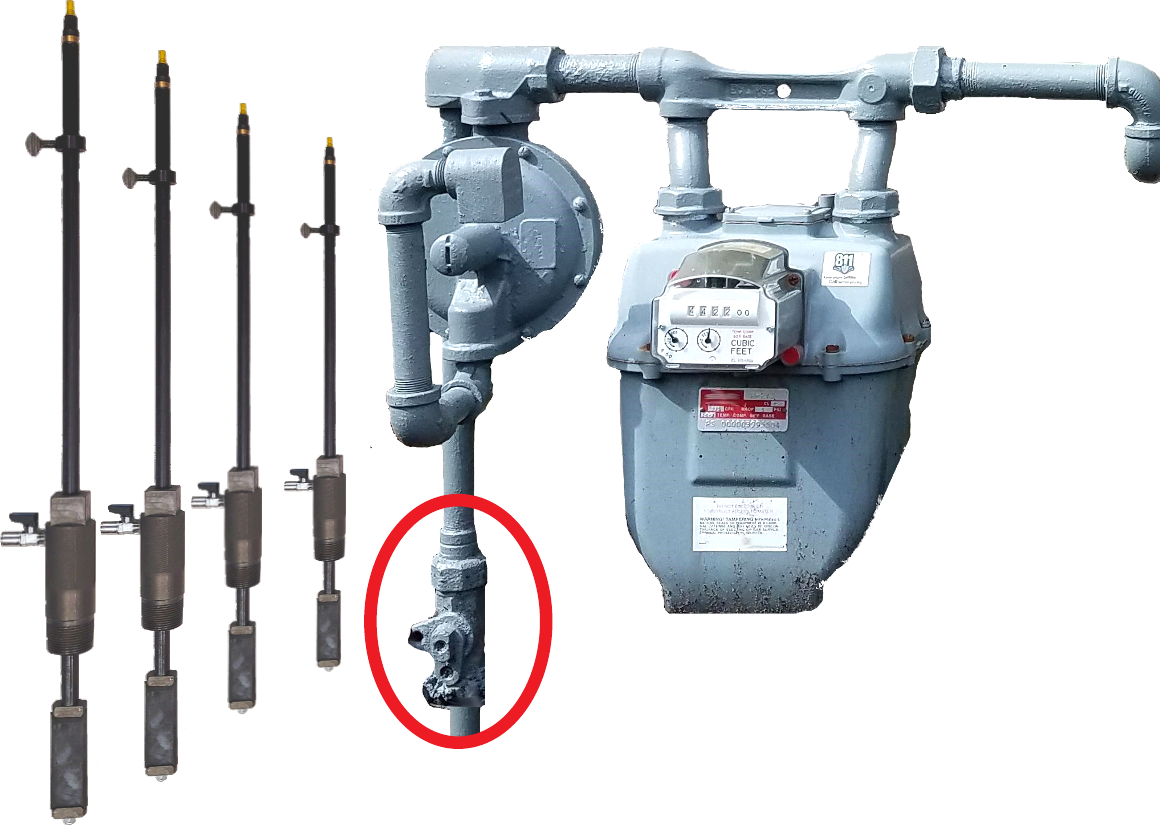

½-2” Meter Valve Changer

Gas-Free removal and replacement of most 1/2″ – 2″ rectangular port or ball meter valves on steel or PE risers operating up to 100 psi.

Valve Changer (PDF)

Presentation

Parts List

Spec Sheet

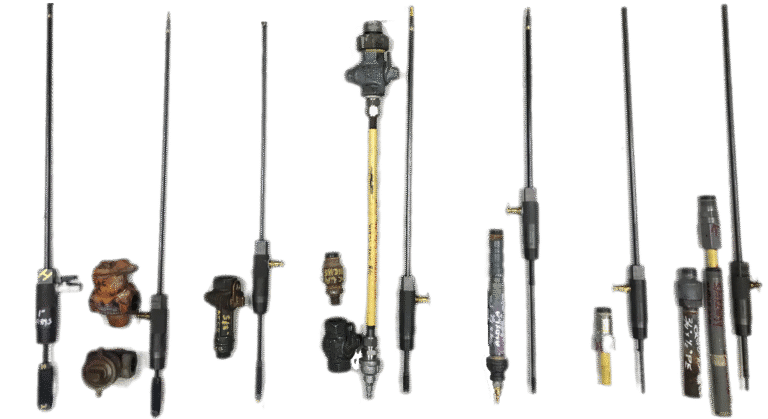

Specialty Valve Changer Units

meter01
Valve Changers2

Benefits:

  • Enhances public and worker safety. No blowing gas.
  • Fast and easy valve change out. Customers can be back online in little time!

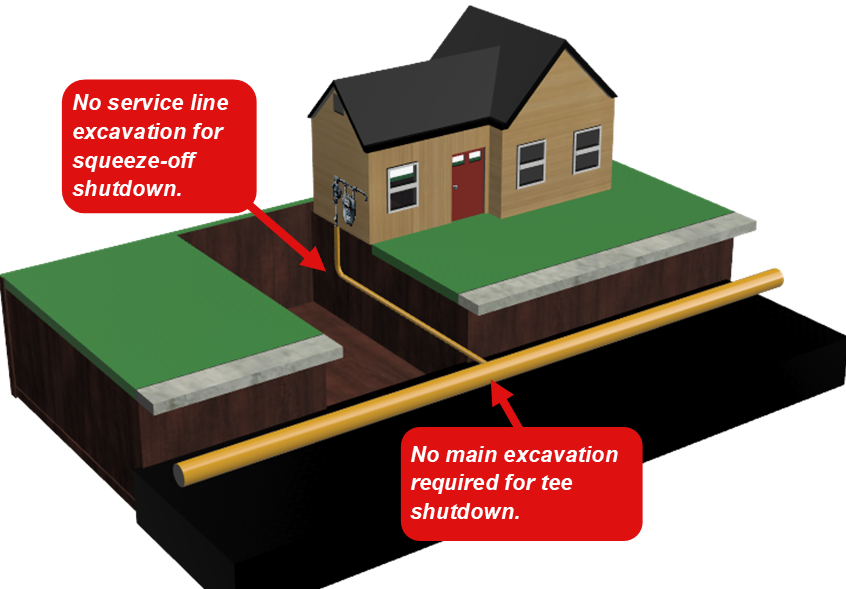

  • Saves the cost of entire service renewal. No need to excavate for a simple leaking meter valve.

Gas Meter Valve Changer Video

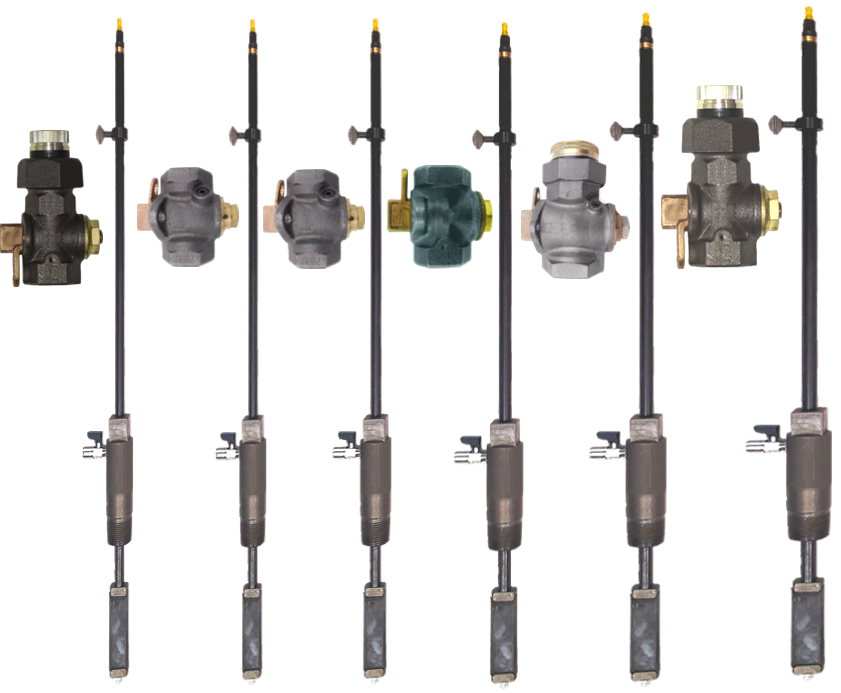

1/2"-2" Sizes Avaiable

Valve Changers

Standard shaft lengths: 24″

Shorter and longer lengths up to 96″ available.

Solutions for many Meter Valve types.

  1. Standard Meter Valves on Schedule 40/80 Risers
  2. Risers with Inserted PE with a Service Head Adapter
  3. Anodeless Risers
  4. Rectangular Port Valves
  5. Round Port Valves
  6. Ball Valves

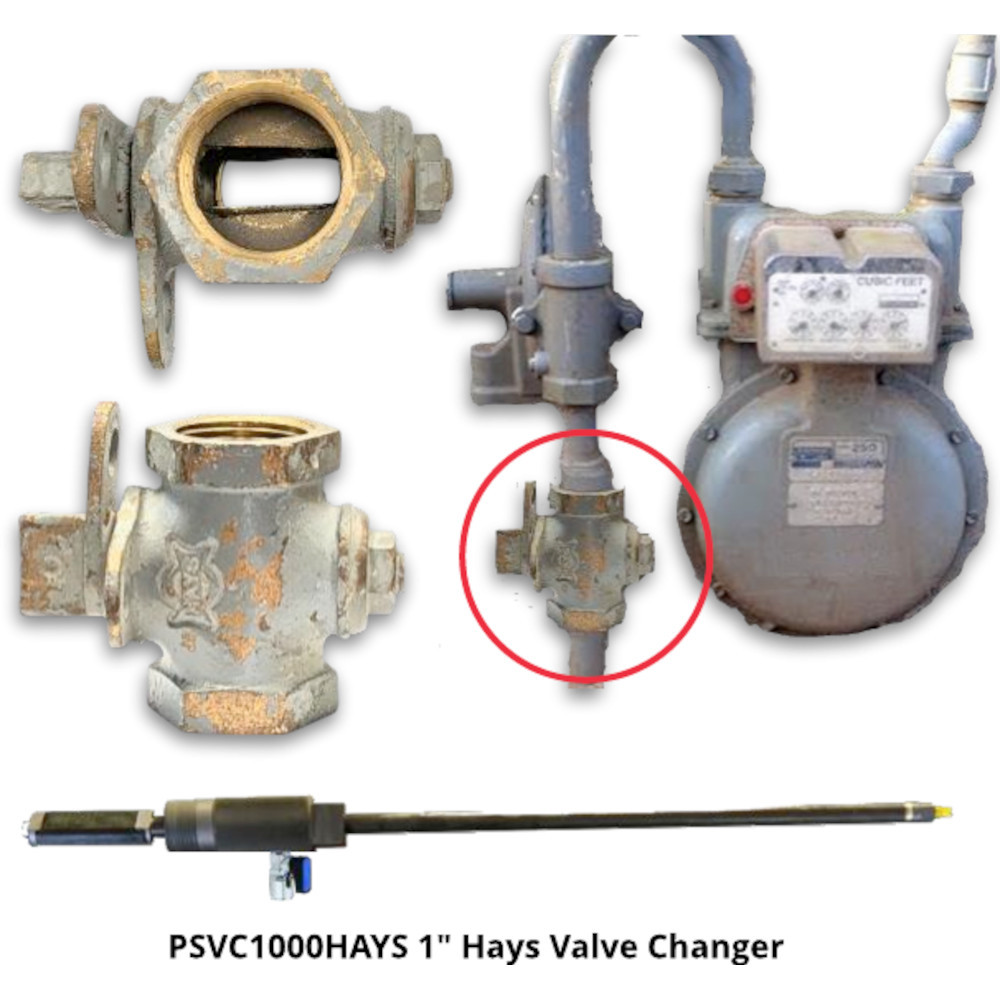

  7. Vales with Undersized Ports

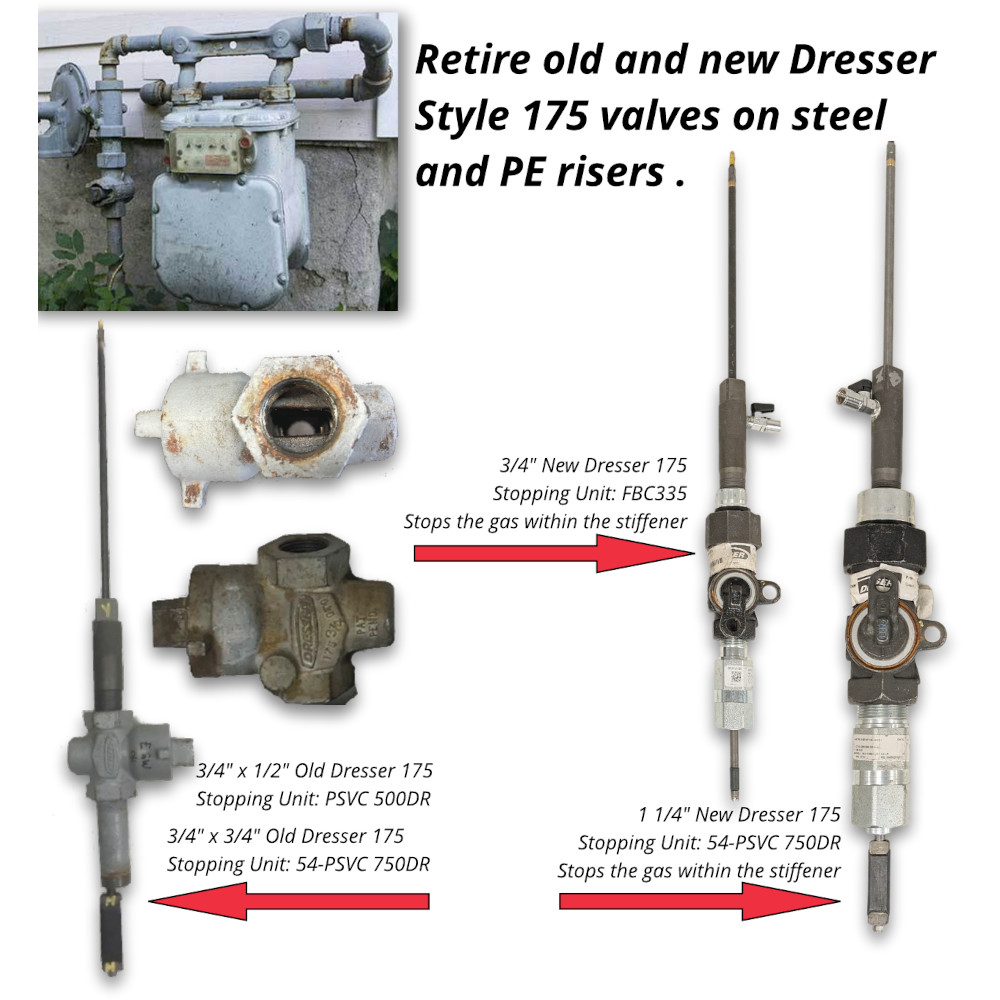

  8. Old Dresser 175 and Hays Valves
  9. Custom Applications Available
Fits many different valves and risers.

Fits many different valves and risers.

The full product line in stock!

instock
Valve Changer

Operation

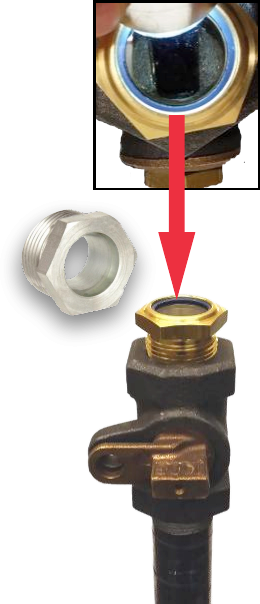

Remove piping and check valve passage with sight glass.

Remove piping and check valve passage with sight glass.

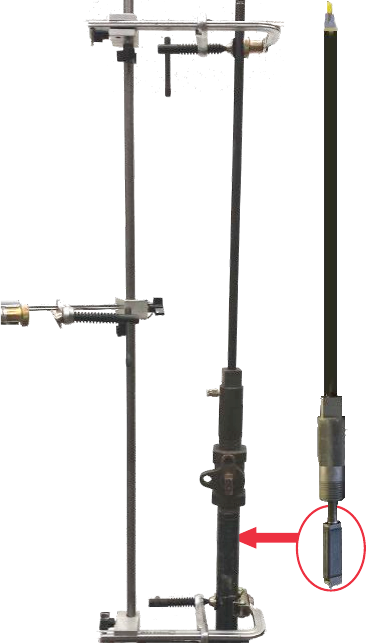

Attach Valve Changer and insert stopper below valve.

Attach Valve Changer and insert stopper below valve.

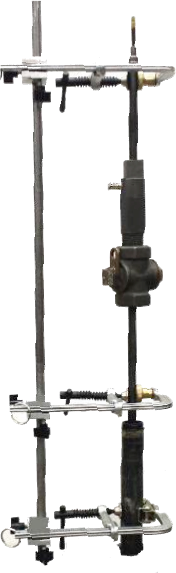

Remove old valve.

Remove old valve.

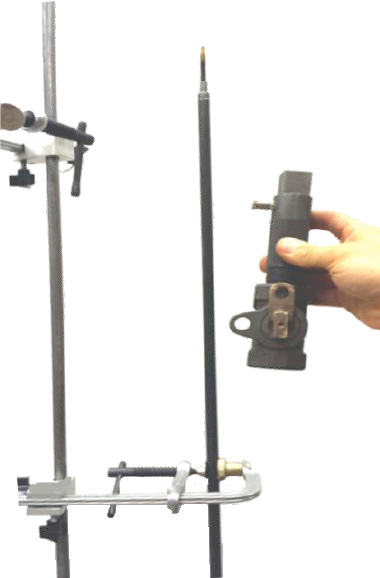

Fit new valve.

Fit new valve.

Optional Operation: Rotten threads are no problem. Cut off old threads and re-thread riser without blowing gas (shown below).

thumbnail_20200605_111553

Reamer Tool Available

Reamer Kit Part: #54-R501020

Includes the following:

1 x Reamer Cone for ½”-3/4” Risers
1 x Reamer Cone for 1”-2” Risers
1 x Reamer Ratchet Handle (fits both cones)

thumbnail_20200605_111650

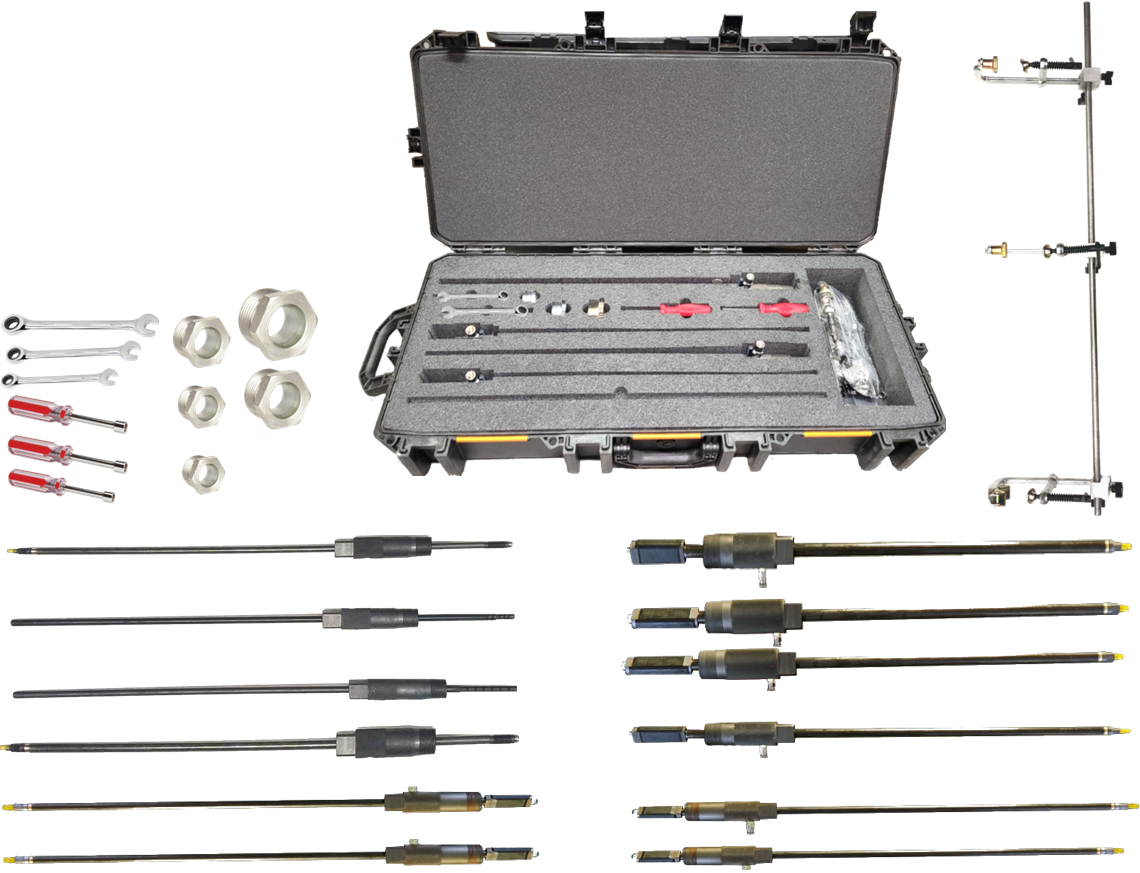

Toolkit

Toolkit

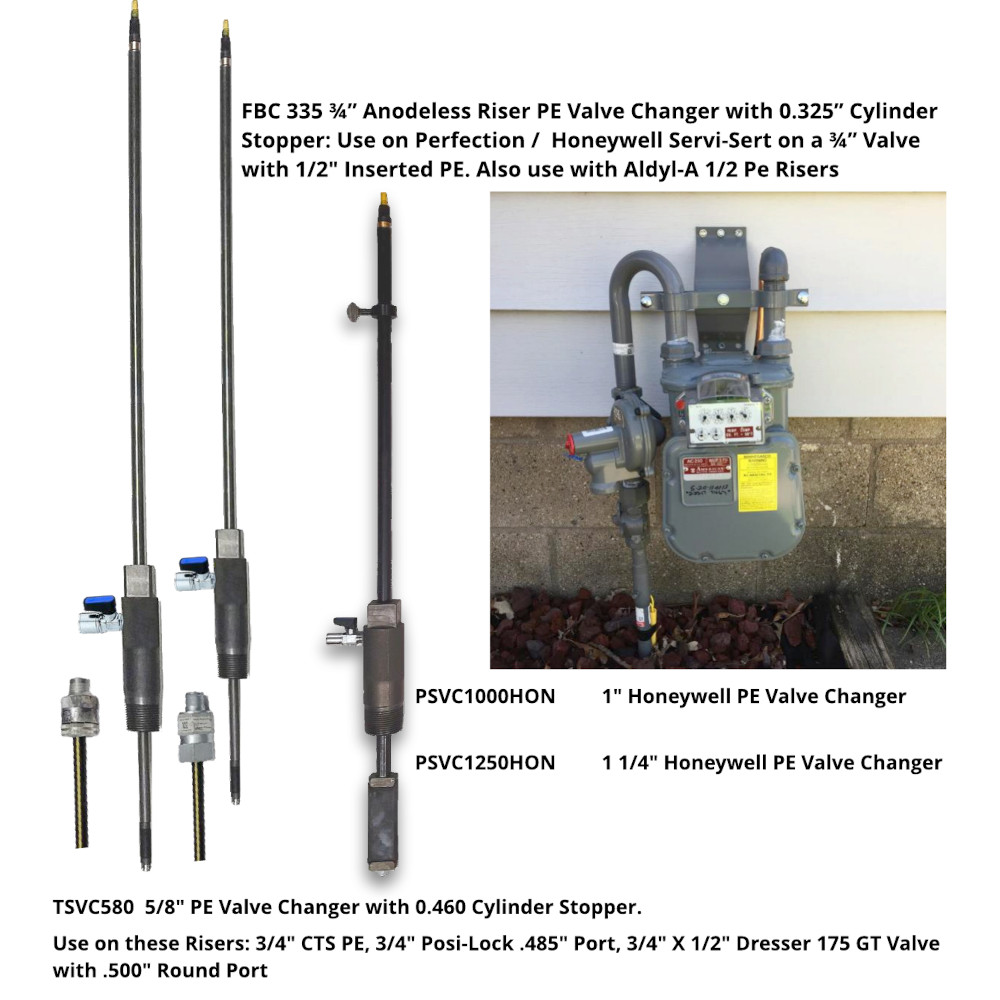

Valve Changer for PE Inserted Riser

Gas-Free replacement of leaking 1/2″ – 1 1/4″ meter valves on inserted PE transition (anodeless) risers with service head adapters operating at a maximum of 100 psi.

meter08
Valve Changer

Custom shaft lengths from 15″ to 96″ Available
