Gas Service Water Remover

Gas Vac Service Water Remover (PDF)

The Service Water Remover System easily removes trapped water from a low-pressure gas service line in seconds.

The system uses a lightweight hand-held venturi vacuum gun fitted with a one-way valve that is powered by an on-site compressor or bottled nitrogen.

Gas Vac Service Connected to serv3

BENEFITS

  • Simple, effective, and lightweight.
  • Works on low-pressure services up to 1½” diameter.
  • Safe collection/transportation of contaminates.
  • Quick-release fittings ease assembly and storage.

METHOD

The service unit connects to the meter valve, via an in-line check valve and sight glass. Pulling the trigger activates the vacuum and quickly removes water from a gas service into a container, which vents to the atmosphere during the operation via flame traps.

The inlet of the water container connects the discharge hose to the Venturi trigger to draw water into the container.  The container, which is negative pressure-resistant, constructed from opaque white plastic enabling the operator to view the amount of water extracted.

Water Removal SERVICE
  1. Connect to the meter valve, via an in-line check valve and sight glass.
  2. Connect the venture gun to your on-site compressor.
  3. Pull the trigger and in a few seconds, all the water is pulled from the service line into the collection container.
  4. The container is placed outside and vents to the atmosphere during the operation via flame traps.
Gas Vac Service Discharge Path

VIDEO

Tool Kit

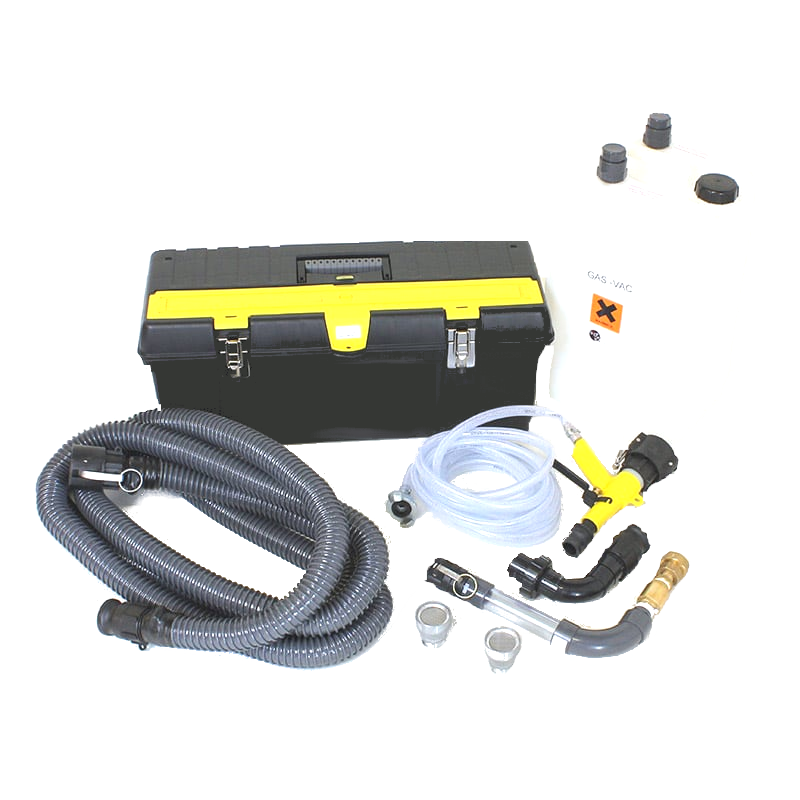

PLCS_pipe_Gas_Vac_Service_Kit

Typical Set-Up

Complete Kit: # 71-076030-AS

gas vac serv
Gas Vac Parts
Gas Vac Service Connected to serv2
Water Removal SERVICE close up (1)
Gas Vac Service Connected to serv3
Water Removal SERVIC2E

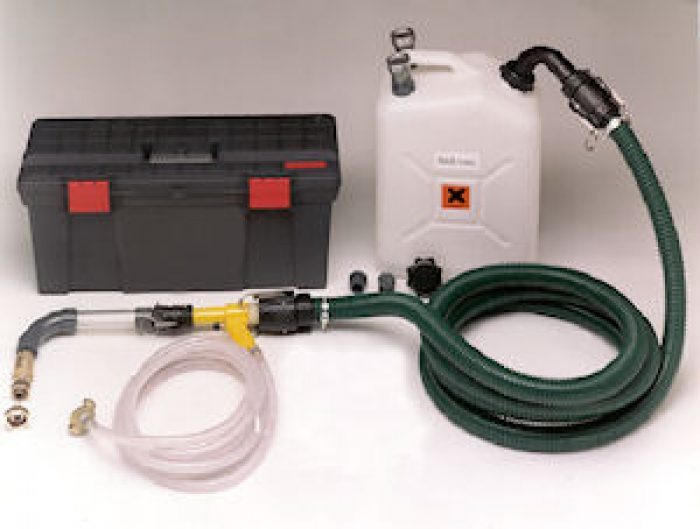

water-removal-service-01
