CUT SHEET (PDF)
Presentation
Parts List
A patented Gas-Free removal of 3/4″-1 1/4″ elbow services operating up to 60 psi.
US Patent #7665481, #8151817, #9951900

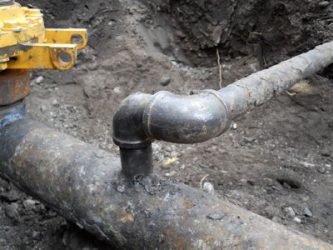

- Removes troublesome elbow swing services within 30 minutes.
- Simple clamp-on assembly.
- No blowing gas, keeping workers safe.
- No need for expensive by-pass operations.
- Compact, only need a standard excavation.
Video
Simple Operation

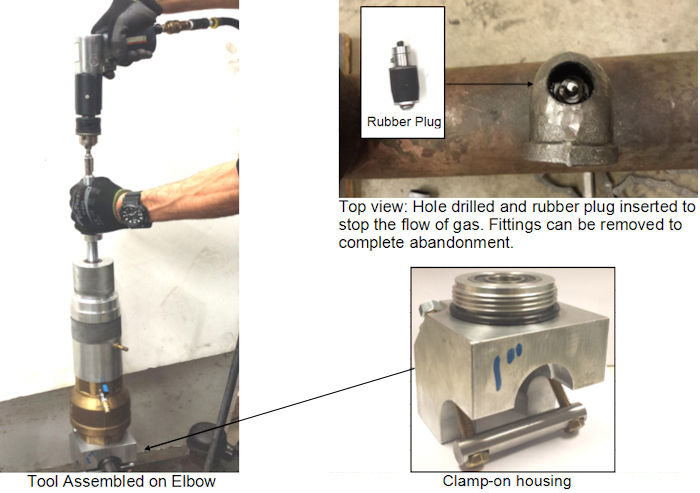

- Drill through the backside of the elbow.
- Insert rubber stopper into nipple or elbow to stop the flow of gas.
- Abandon service.
| PATENT TITLE | PATENT FILE # | PATENT COUNTRY |
| PRESSURIZED FLUID LINE SERVICING TOOL | 7665481 | USA |
| AN APPARATUS FOR ISOLATING ELBOW FITTINGS | 8151817 | USA |
| EXTERNAL SEAL FOR ISOLATING AN ELBOW FITTING | 9951900 | USA |
| PRESSURIZED FLUID LINE SERVICING TOOL | 2515275 | CANADA |
| PRESSURIZED FLUID LINE SERVICING TOOL | 2555103 | CANADA |
| AN APPARATUS FOR ISOLATING ELBOW FITTINGS | 2676677 | CANADA |
| EXTERNAL SEAL FOR ISOLATING AN ELBOW FITTING | 2943106 | CANADA |
